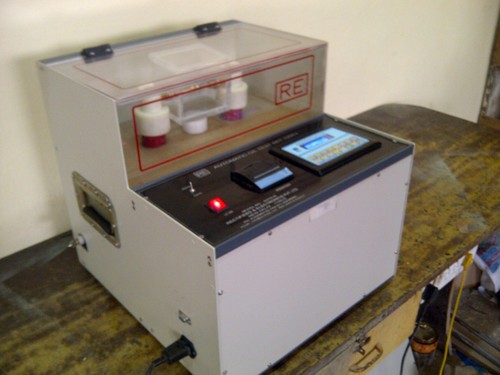

Automatic Oil Tester

Automatic Oil Tester
Automatic Oil Tester
Product Code : 21
Product Description

Holding high functioning machinery, we are noted as the pioneer manufacturer and supplier of Fully Automatic Oil Tester. To manufacture these testers in compliance with industrial standards, we procure certified quality components & materials from reliable vendors of the market. Available with printer facility, these testers are broadly used for dielectric strength of insulting oil as per IS-335. Owing to attributes such as manual feather touch control, one touch operation and excellent durability, our Fully Automatic Oil Tester is popular in the market.

Further Details:

'RE' is the pioneer in manufacturing of different kinds of electrical test equipment in India and Automatic Oil Test set is one of them oil test set is designed for testing the d. The unit develops high voltage between electrodes immersed in oil under test as per IS: 6792. In addition to the test preparation in detail, the set is automatically governed by a trouble-free Microprocessor. These features enable user to operate the equipment with a single touch of the 'Feather Touch Button'. The results can be viewed on the back lit LCD display or can be printed as a hard copy. The results can be summarized at a later stage because of the presence of seven last tests stored in the memory.

Special Features

  • Compact size and portable design
  • Built in safety arrangements
  • Easy to operate
  • Efficient after sales service
  • Guaranteed for one year against manufacturing defects

Key Features

  • Auto/Manual selectable
  • Real time clock & date
  • on the unit
  • 99 Record Memory
  • Avg. Std Der. calculation & display

Brief technical Details

The equipment offered shall be convenient for determination of electrical strength (break down voltage) of insulating oil confirming to IS-335 when measured in accordance with IS, ASTM, IEC, UNE, BS etc.

The Dielectric Strength Test Kit is fully automatic, microprocessor controlled with built-in display and printer. The unit is complete with test stirrer, calibrator and necessary gauges for adjusting the gap.

Model

AOTS-II

Input Voltage

220/230 Volts

Output Voltage

0-100 kV

Frequency

50 HZ

Capacity

1.0 kVA

Cooling

Air Cooled

Rating

Testing Duty Only

Rate of rise of voltage

0.5 kV/Sec to 5.0 kV/Sec

Operator Code

Programmable

Duration of Withstand tester

0-9999 Sec

Number of operations

1-99

Stir time for oil

0-9999 Sec

Wait Time

0-9999 Sec

Security

Password Protected

Shielding

Elecromagnetic & Electrical Flux

Motorised Manual Control

Through Feather Touch Panel

Display/Output Mode

On Screen (LCD), Printer

Memory

In-built memory for last 99 tests

Test Options

The kit has pre programmed test plans as per various latest international standards such as BS, ASTMD 877, UNE 21, ASTMD 1816, NFC 27 IEC 156- 1995 etc
