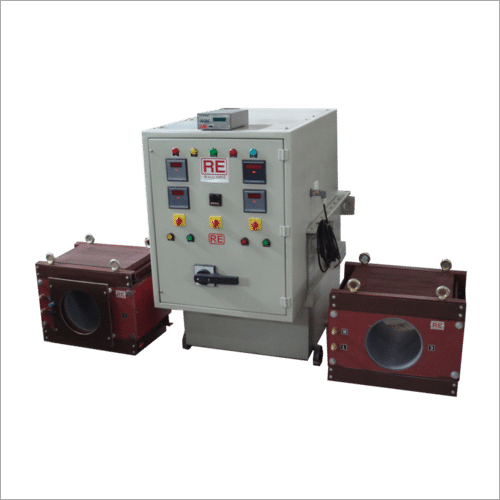

Heat Cycle Tester

Heat Cycle Tester
Product Code : RE-05
Brand Name : RE
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Price Range
  • 300000 - 500000
Product Description
Description / Overview



Heat Cycle Test Systems are designed to raise and control the temperature of a conductor or other low impedance electrical loop to simulate the current loading conditions found in electrical circuits.

This heating is achieved by utilizing the test loop as the secondary winding of a current transformer for inductive heating. Measurement of the loop temperature is made by direct contact of a K-type thermocouple probe with the conductor of the test loop.

Our systems are offered as low voltage test systems or high voltage test systems. The low voltage test system utilizes one loop of the conductor passing through the desired number of CT carts to reach the necessary current level. Additionally Impulse tests can be performed on the high voltage side of the test set up.

Designed for working on 400V, 2 Phases of  3Phase AC supply.  Supplying up to 6000 Amperes in cables loop of up to 15 meter of suitable capacity. Various other optional accessories are available including advance control system.

Accessries

Standard Accessories

PID Controller.

Cart to cart power cable.

Cart to cart measurement cable.

Optional Accessories/Features

Fiber Cable based PID Controller.

Impulse string insulator support.

High Voltage Insulation up to 132 kV.

.



Features



vType k thermocouples

vSafety Interlocks

vAutomatic and manual control of test sequences

vTimer for up to 900hours

vZero start inter-lock

vMobile CT carts with castors

vUpdateable software

vMain Power Breaker

vInductive Current Compensation





Detailed Specifications



 Heat Cycle Test Set
Sr. No. ParameterDescription
1Input Voltage380 / 400V 2 phase 50/60HZ
2Output CurrentUp to 6000A
3Temprature Thermocouplek-type(Optically isolated) or fibre optic type
4Cable lengthUpto 15meter
5Current Injection cartseach capable to 750Amps
6No. of cartsUpto 7
7Heating ControlPID controlled with zero interlock bypass
8TimerUpto 30 days
9AmpereMeter Range and  Accuracy Range  : As per capacity
Accuracy : 0.5%
