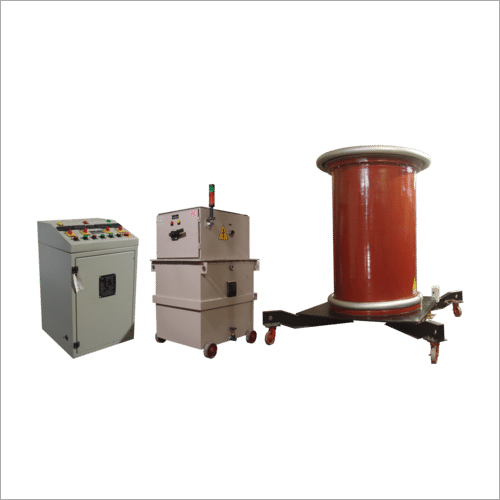

Induced Over Voltage Power Frequency Tester

Induced Over Voltage Power Frequency Tester
Induced Over Voltage Power Frequency Tester
Product Code : 17
Product Description

Induced Over Voltage Power Frequency Tester

Induced Over Voltage Test Set is used for testing the strength of insulation between turns and between other points of the transformers and for conducting NO Load and Load Tests etc as stipulated by BIS or other standard specification. For this test Double Voltage is applied across L.T. terminals for one minute and to control the magnetizing current over voltage frequency is applied.

It is and independent unit having coupled motor and Generator with Control Panel to control the motor and output voltage. Depending upon the design requirements AC or DC motors are utilized.

Special Features

  • No foundation required
  • Unit ready for use
  • Fine Voltage control
  • Short Circuit protection
  • Calibrated Voltage and Ampere Meter
  • Easy to operate complete with operator safety features
  • Guaranteed for one year against manufacturing defects
  • Sufficient after sales service
Technical Details

The control panel consists of direct on-line or Star-Delta depending upon capacity of the setup. Moving Coil Voltmeter and Ammeter are provided to indicate the output voltage and current. Frequency meter is provided to check output frequency. While for measuring input voltage and current, moving iron type meters for DC motor, DC drive is used to control/vary the frequency.

Input voltage

415V, 3 phase LT AC Supply/ 11 kV, 3 phase HT AC Supply

Output Voltage

0-1000 V or As required/ 0-66 kV/ 0-11 kV

Output Frequency

Various upto 400Hz

Capacity

Upto 20 MVA

Protection

Zero Star Inter Locking, Overload Protection, Single Phasing Preventer etc.

Foundation

Not Required
