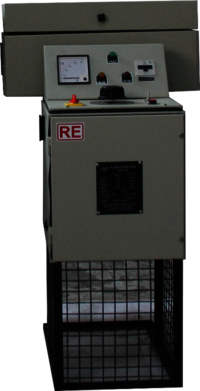

Cable Spark Tester
50000.00 - 100000.00 INR/Set
Product Details:
- Product Type High Voltage Spark Tester for Insulation Testing of Cables
- Material MS
- Measuring Voltage Range Up to 800kV and 250mA Volt (v)
- Operating Temperature 0-50 Deg. C Celsius (oC)
- Frequency (MHz) 50 Hz Hertz (HZ)
- Insulation Box Output Voltage on Specific Designed Electrodes
- Protection System Overload , Over voltage and earth fault protection
- Click to View more
X
Cable Spark Tester Price And Quantity
- 50000.00 - 100000.00 INR/Set
- 01 Set
Cable Spark Tester Product Specifications
- Up to 800kV and 250mA Volt (v)
- Depends upon the kV rating required by Customer
- Depends upon the kV rating required by Customer Millimeter (mm)
- High Voltage Spark Tester for Insulation Testing of Cables
- RAL-7032
- Depends upon the kV rating required by Customer Kilograms (kg)
- Output Voltage on Specific Designed Electrodes
- 50 Hz Hertz (HZ)
- MS
- 12 Months from Manufacturing
- Overload , Over voltage and earth fault protection
- 0-50 Deg. C Celsius (oC)
Cable Spark Tester Trade Information
- Delhi
- 3 Set Per Year
- 8 Week
- Yes
- Contact us for information regarding our sample policy
- Bubble Wrap Packing Or Wooden packing or As required by Customer
- All India
- ISO 9001 : 2008 ISO : 14001 OHSAS : 18000
Product Description
Description / Overview :-
RE High voltage spark testers are designed for checking the quality of insulation coated wires for pin holes / weak insulation / exposed conductor during manufacturing at work floor. The wire is passed through brass ball beads which carry high voltage. If any pin hole is detected in PVC, a spark develops and electro magnetic counter counts the fault. The spark tester is necessary for every cable manufacturing unit. Spark Testers can be used for high speed extruders and high speed Recoiling processes. The efficiency of Spark Tester is up to 95%.
Special Features :-
- Designed for extruder and recoiling operations.
- Height adjustable Electrode box
- Compact size.
- Built in safety features for operators
- Easy to operate.
- Recoiling shutdown as per operator setting.
Accessories :-
- Exit point cable earthing
- Cable supporting roll.
Techncial Specifications :-
|
| AC High Voltage Frequency Spark Tester | |
| Sr. No. | Parameters | Description |
| 1 | I/p Voltage | 230/240 Volt 50 Hz. AC Supply, single phase |
| 2 | Test Voltage | Up 50KV |
| 3 | Test Frequency | 50HZ |
| 4 | Dia. Range | Up to 150mm |
| 5 | Line Speed | 300 m/min. |
| 6 | KV Meter | Analog or Digital display as required. |
| 7 | Indicator | a) LT ON |
| 8 | Fault Counter | Electro-Mechanical / Digital (resettable) |
| 9 | Protection | a) Input Fuse |
| 10 | Duty | Continous |
| 11 | Control | Trip or bypass available |
| 12 | Electrode Box Length | 150 mm x 150mm x 350 mmlength |
| 13 | Length beads path | 100 mm x 100 mm x 150 mm lengths |

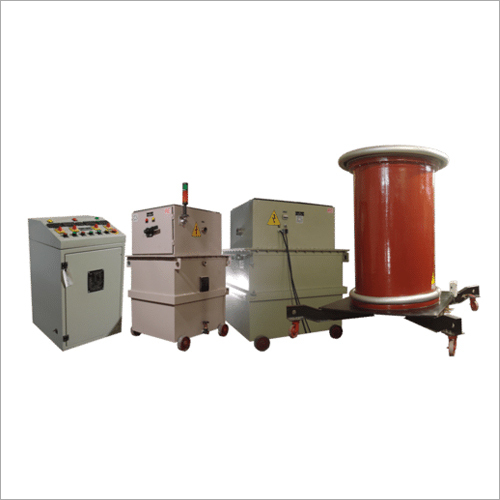

Other Products in 'AC High Voltage' category
