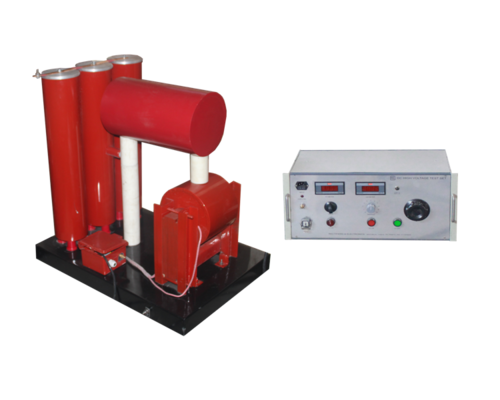

Hipot Testing (DC)
50000.00 - 100000.00 INR/Set
Product Details:
- Product Type DC High Voltage upto 400kV and 1000mA
- Material MS
- Measuring Voltage Range Up to 800kV and 250mA Volt (v)
- Operating Temperature 0-50 Deg. C Celsius (oC)
- Frequency (MHz) 50 Hz Hertz (HZ)
- Insulation Box Output through available HT cable
- Protection System Overload, Over voltage and earth fault protection
- Click to View more
X
Hipot Testing (DC) Price And Quantity
- 50000.00 - 100000.00 INR/Set
- 01 Set
Hipot Testing (DC) Product Specifications
- Up to 800kV and 250mA Volt (v)
- Depends on the kV rating required by Customer
- Output through available HT cable
- Depends on the kV rating required by Customer Kilograms (kg)
- RAL-7032
- 50 Hz Hertz (HZ)
- MS
- DC High Voltage upto 400kV and 1000mA
- 0-50 Deg. C Celsius (oC)
- 12 Months from manufacturing
- Overload, Over voltage and earth fault protection
- Depends on the kV rating required by Customer Millimeter (mm)
Hipot Testing (DC) Trade Information
- Delhi
- 3 Set Per Year
- 8 Week
- Contact us for information regarding our sample policy
- Bubble Wrap packing Wooden Packing Or as per customer requirement
- All India
- ISO 9001:2008 ISO14001 and OHSAS : 18000
Product Description
Description :-
DC High Voltage Test Set is used for testing cables, generators and other electrical equipments as per National and International specifications. The unit consist of variac, transformer , rectifier, condenser, bleeder, filter etc. All the components are housed in sheet metal housing or specially designed fiber glass housing which are coated with anti tracking paints.
Features :-
- Easy to operate.
- Rugged and compact in construction
- Full-wave voltage doublers circuit / Multiplier Circuit.
- Zero start interlock and earth interlock
- Meter accuracy +- 1% full scale
- Air Cooled Units / Air and Oil Cooled units
- Digital meters for easy readability.
- High Voltage Surge protection.
Standard Accessories
-
Discharge Rod with 10 meter Long Lead with Clamp.
Optional Accessories
-
Dead Man Switch
Technical Specifications :-
| | DC High Voltage Test Set(Stationary Type) | |
| Sr. No. | Parameter | Description |
| 1 | Input Voltage | 220/230V or 380/400, 50HZ / 60HZ AC Supply |
| 2 | Output Voltage | Up to 500kV |
| 3 | Capacity | Up to 1000mA |
| 4 | Duty Cycle | Continuous for Testing or 15 minutes at full load |
| 5 | Control | Type 1- The unit can be manual control for voltage variation and push button controlled for HT actuation. |
| 6 | Metering | The metering can be provided via resistive voltage divider for direct HT voltage and current measurement |
| 7 | Termination | The negative and positive terminal are brought out on suitable insulator. Positive and negative polarirty can be supplied on earth potential on request. |
| 8 | Protection | The unit consist of fast acting DC relay which actuates instantaneously if the testing current goes beyond the preset level. |
| 9 | Rectifier | Silicon diodes with RC networks are used for rectification in bridge or double or multiplier or half wave circuit. |
| 10 | Filter | A suitable capacity filter is added to ensure that the ripple is less than 2%. |
