Hipots DC Portable
50000.00 - 100000.00 INR/Set
Product Details:
- Product Type DC Hipot up to 400kV and 10mA
- Material MS
- Measuring Voltage Range Up to 800kV and 250mA Volt (v)
- Operating Temperature 0-50 Deg. C Celsius (oC)
- Frequency (MHz) 50 Hz Hertz (HZ)
- Insulation Box Output through available HT Cable
- Protection System Over load, Over Voltage and Earth fault Protection
- Click to View more
X
Hipots DC Portable Price And Quantity
- 50000.00 - 100000.00 INR/Set
- 01 Set
Hipots DC Portable Product Specifications
- Over load, Over Voltage and Earth fault Protection
- Depends on the kV rating required by Customer Kilograms (kg)
- 50 Hz Hertz (HZ)
- RAL-7032
- Output through available HT Cable
- 0-50 Deg. C Celsius (oC)
- 12 Months from Manufacturing
- DC Hipot up to 400kV and 10mA
- Depends on the kV rating required by Customer Millimeter (mm)
- Depends on the kV rating required by Customer
- Up to 800kV and 250mA Volt (v)
- MS
Hipots DC Portable Trade Information
- Delhi
- 3 Set Per Year
- 8 Week
- Contact us for information regarding our sample policy
- Bubble Wrap Packing Wooden packing with waterproof or As per customer requirement.
- All India
- ISO : 9001:2008 ISO:14001 and OHSAS :18000
Product Description
Description :-

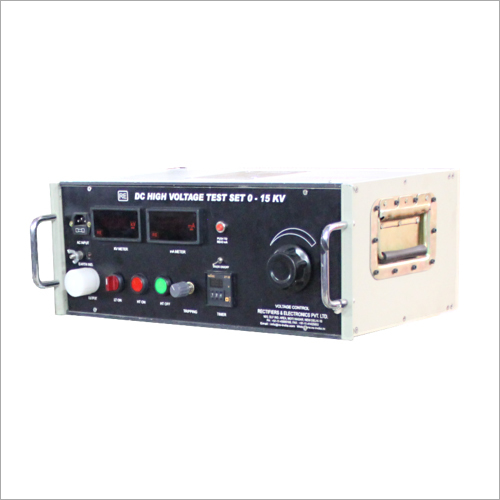

Portable DC High Voltage Test Set is used for testing underground cable, generators, switchgear etc. for understanding the condition of current leakage / insulation condition at any given point. These are extremely light weight units designed for field operation (Substation, Power Projects, Remote sites etc.). The units are delivered in custom made carry boxes to endure rough and rugged transportation.
Features :-
- Easy to operate
- Digital meters for easy readability.
- High Voltage Surge protection
- Multiplier circuit for better life.
Standard Accessories
- 5 meter long shielded output cable with first sized clamp.
- 5 meter long input AC flexible chord with plug.
- Discharge Rod with 5 meter Long Lead with Clamp.
- Housings of the set accommodate in itself HT and main lead and other accessories.
- Covers for high voltage male and female sockets.
- Dead man switch
- Foot switch.
Technical Specifications :-
| 1 | Input Voltage | 220/230V 50HZ / 60HZ AC Supply |
| 2 | Output Voltage | Up to 400kV |
| 3 | Cooling | Naturally air cooled |
| 4 | Control | Type 1- The unit can be manual control for voltage variation and push button controlled for HT actuation. |
| 5 | HT Cable | The equipment is supplied with copper braided HT cable with HT plug and socket. The braiding remains on earth potential |
| 6 | LT Cable | For input supply 5meter long 3 core cable is provided |
| 7 | Zero start interlocking | This is to ensure that HT shall not actuate if the voltage control knob is at zero position |
| 8 | Earth Interlocking | If proper earth is not connected the HT will not actuate |
| 9 | Auto Discharge Arrangement | The equipment consist of automatic cable discharging arrangement |
| 10 | Socket | HT plug and socket has beed especially developed by RE with automatic earthing arrangement |
| 11 | Meter | mA meter and voltmeter are provided on HT side. The meters are fully protected against surges and spikes. |
| 12 | Over Voltage Protection | HT automatically trips in case of output voltage exceeds the preset level |
| 13 | Surges and Spikes Protection | During the testing surges or spikes are often generated due to short circuit. The equipment is fully protected against these. |

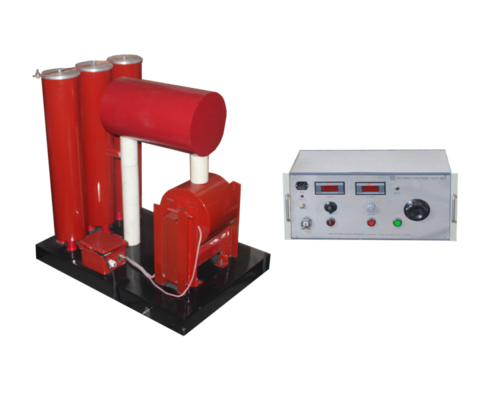

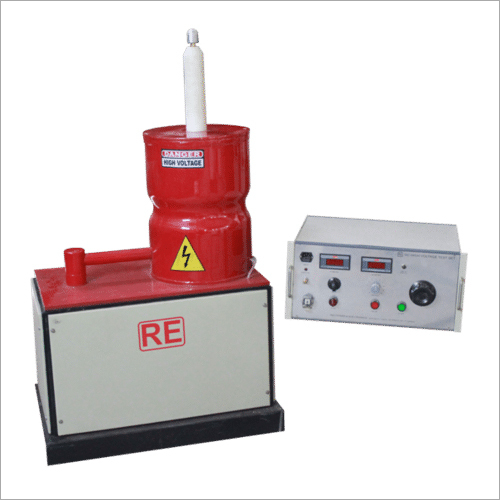

Other Products in 'DC High Voltage' category
