Secondary Current Injection Test Set - Single Phase Up to 100Amps Secondary Current Injection Test Set - Single Phase Up to 100Amps Secondary Current Injection Test Set - Single Phase Up to 100Amps Secondary Current Injection Test Set - Single Phase Up to 100Amps Secondary Current Injection Test Set - Single Phase Up to 100Amps
Secondary Current Injection Test Set - Single Phase Up to 100Amps
Secondary Current Injection Test Set - Single Phase Up to 100Amps Secondary Current Injection Test Set - Single Phase Up to 100Amps Secondary Current Injection Test Set - Single Phase Up to 100Amps Secondary Current Injection Test Set - Single Phase Up to 100Amps

Secondary Current Injection Test Set - Single Phase Up to 100Amps

50000.00 - 100000.00 INR/Set
Get a Price/Quote

Product Details:

  • Product Type For realys Testing
  • Material MS
  • Measuring Voltage Range Up to 800kV and 250mA Volt (v)
  • Operating Temperature 0-50 Deg. C Celsius (oC)
  • Frequency (MHz) 50 Hz Hertz (HZ)
  • Insulation Box Output on Banana Terminals
  • Protection System Overload, Over Current and Earth fault Protection
  • Click to View more
Request to Call Back Send Inquiry
X

Secondary Current Injection Test Set - Single Phase Up to 100Amps Price And Quantity

  • 01 Set
  • 50000.00 - 100000.00 INR/Set

Secondary Current Injection Test Set - Single Phase Up to 100Amps Product Specifications

  • MS
  • For realys Testing
  • Depends on Current Rating required by Customer
  • RAl-7032
  • 12 Months from manufaturing
  • Up to 800kV and 250mA Volt (v)
  • Overload, Over Current and Earth fault Protection
  • Depends upon the Current Rating required by Customer Kilograms (kg)
  • 0-50 Deg. C Celsius (oC)
  • 50 Hz Hertz (HZ)
  • Depends upon the Current Rating required by Customer Millimeter (mm)
  • Output on Banana Terminals

Secondary Current Injection Test Set - Single Phase Up to 100Amps Trade Information

  • Delhi
  • 3 Set Per Year
  • 8 Week
  • Yes
  • Contact us for information regarding our sample policy
  • Bubble Wrap Packing Wooden packing with water proof or As per customer requirement.
  • All India
  • ISO 9001 : 2008 ISO : 14001 and OHSAH : 18000

Product Description

Description:

Secondary Current Injection Test Set has been designed keeping in view the requirements of field and laboratory. The sets are portable, light in weight, yet have all the technical features required for testing relays and contractors etc. Our Equipments are Compact in size and have built in safety arrangements in case of short circuit and overloading, these units are easy to operate. These units are available in single phase and three phase units.

Accessories

Output DC voltage cable.

Features

  • Light in weight
  • Suitable for static as well as electromechanical relays
  • Instantaneous operation of less than 2mS
  • Unit designed for AC/DC voltage current and relays.

Detailed Specifications

Single Phase Secondary Current Injection Test Set

Sr. No.

Parameters

Description

1

I/p Voltage

220/230 Single phase 50 Hz/60Hz AC Supply

2

O/p Current

Up to 100A

3

O/p Voltage

0- 400VAC, 0-400VDC

4

Duty Cycle

As required

5

Control

1- The unit can be manual control for current.
2- The unit can be manual control for AC/DC voltage.
3- Timer ON/OFF switch Shall be provided.
4- Current ON/OFF switch shall stop current and timer and shall hold the reading.
5- Reset switch shall be provided to re-start the timer and Ammeter.
6- Start switch shall be start time and current together.

6

Metering

1 - Digital Ammeter : Will be provided with built in CTs
2- Digital Voltmeter AC/DC : Will be provided.
3 - Digital Timer : 0.9999-9999 Sec.

7

Termination

Timer NO / NC terminal
AC terminal 0-400V
DC terminal 0-400V
Current terminal 0-100A

8

Control Panel

(i) ON/OFF switch
(ii)Digital Output Ampere meter for AC current and Voltmeter for AC and DC voltage.
(iii)Start push button and reset push button and off push button.

Other Products in 'AC High Current' category

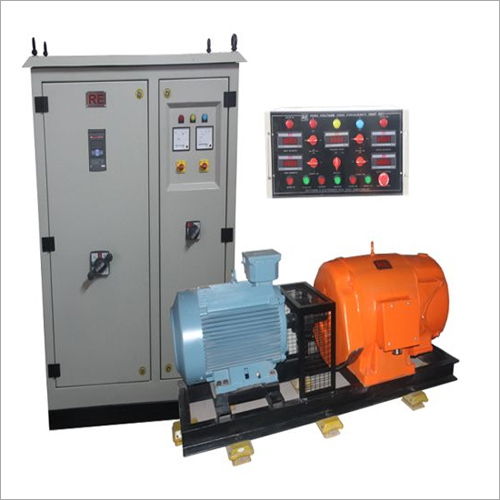

High Voltage High Frequency Tester
Send Inquiry
Heat Run Test Set
Send Inquiry

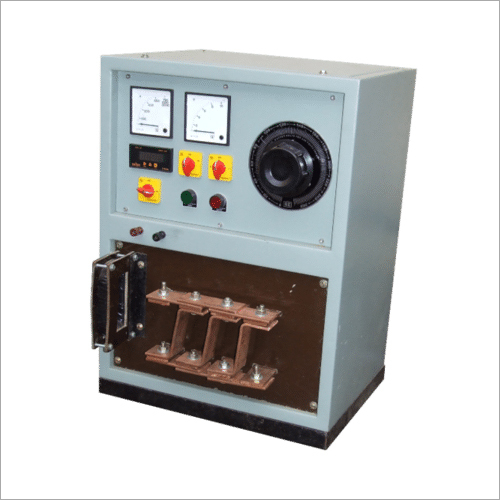

Primary Current Injection Test Set
Send Inquiry

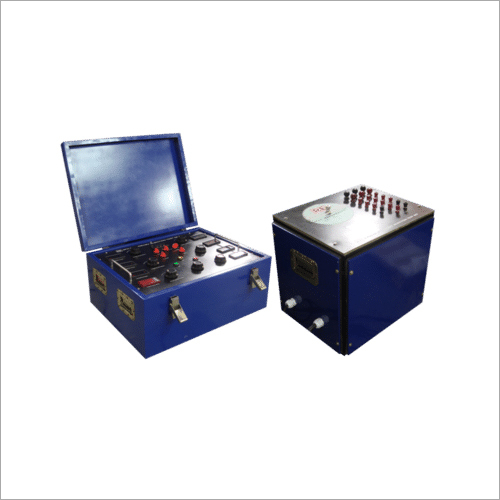

Secondary Current Injection Test Set - Three Phase ( Up to 100Amp)
