Induced Over Voltage Tester

50000.00 - 100000.00 INR/Set

Get a Price/Quote

Product Details:

Product Type For testing inter turn insulation of the Transformer
Material MS
Measuring Voltage Range Up to 800kV and 250mA Volt (v)
Operating Temperature 0-50 Deg. C Celsius (oC)
Frequency (MHz) 50 Hz Hertz (HZ)
Insulation Box Output through busbar on backlite
Protection System Over load, Over voltage and Earth fault protection
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Induced Over Voltage Tester Price And Quantity

Minimum Order Quantity 01 Set
Price Range 50000.00 - 100000.00 INR/Set

Induced Over Voltage Tester Product Specifications

Frequency (MHz) 50 Hz Hertz (HZ)
Dimension (L*W*H) Depends on Rating required by Customer Inch (in)
Measuring Voltage Range Up to 800kV and 250mA Volt (v)
Protection System Over load, Over voltage and Earth fault protection
Product Type For testing inter turn insulation of the Transformer
Insulation Box Output through busbar on backlite
Size Depends on Rating required by Customer
Weight Depends on Rating required by Customer Kilograms (kg)
Warranty 12 Months from Manufacturing
Operating Temperature 0-50 Deg. C Celsius (oC)
Material MS
Color RAL-7032

Induced Over Voltage Tester Trade Information

FOB Port Delhi
Supply Ability 3 Set Per Year
Delivery Time 8 Week
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Bubble Warp Packing Wooden pack with waterproof or As per customer requirement.
Main Domestic Market All India
Certifications ISO 9001:2008 ISO: 14001 and OHSAS: 18000

Product Description

Features

No foundation required hence easily movable with in premises.
No Installation required hence can be commissioned immediately upon delivery.
Fine Voltage control.
Short Circuit Protected.
Calibrated Voltage and Ampere Meter.
Easy to operate complete with operator safety features.

Accessories

Standard Accessories
Control Panel Generator
Optional Accessories
Power Cable

Detailed Technical Specifications

Double Voltage Double Frequency test Set(DVDF) or Motor Generator Test Set
Parameter	Description
Maximum Capacity	Up to 10MVA
Input Voltage	400V 3-phase / 11kV 3-phase beyod 1MVA
Output Voltage	1000V up to 1mVA 11kV up to 10MVA
Output Frequency	100, 150, 200Hz or 50 to 200Hz
Protection	Overvoltage protection Overcurrent Protection Overload Protection Overspeed Protection Frequency Feedback
Generator	Brushless Slip Ring type
Motor	Induction type
Rated RPM	1500
PD Level	Induction Generator - NA Brushless Generator - less than 2pC
Mounting	On Vibration pads
Metering	Digital
Control	Manual Control Digitized Panel PLC Based System
Motor Starting	DOL up to 10HP Start Delta Starter up to 75HP Soft Starter up to 500HP AC drive beyond 500HP
Motor - Generator Coupling	Up to 10KVA - Spring Loading Self aligning After 10kVA - 100kVA - Tyre coupling Above 100KVA - Solid flange coupling

Other Products in 'AC High Current' category

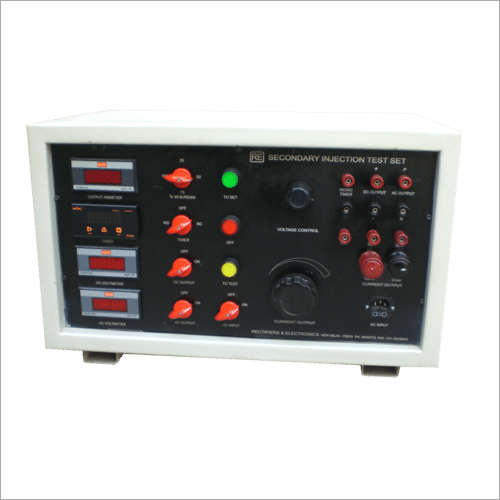

Secondary Current Injection Test Set - Single Phase Up to 100Amps Price Range : 50000.00 - 100000.00 INR/Set Minimum Order Quantity : 01 Measuring Voltage Range : Up to 800kV and 250mA Volt (v) Frequency (MHz) : 50 Hz Hertz (HZ) Material : MS Operating Temperature : 050 Deg. C Celsius (oC) Dimension (L*W*H) : Depends upon the Current Rating required by Customer Millimeter (mm) Protection System : Overload, Over Current and Earth fault Protection Color : RAl7032 Product Type : For realys Testing Warranty : 12 Months from manufaturing Weight : Depends upon the Current Rating required by Customer Kilograms (kg) Size : Depends on Current Rating required by Customer Insulation Box : Output on Banana Terminals

Send Inquiry

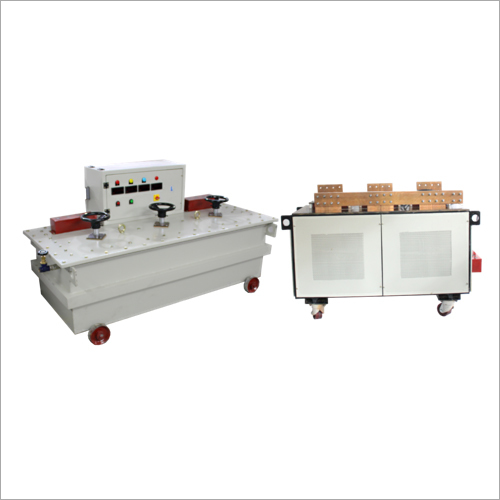

Primary Current Injection Test Set Three Phase Up to 25000Amp and 500kVA Price Range : 50000.00 - 100000.00 INR/Set Minimum Order Quantity : 01 Measuring Voltage Range : Up to 800kV and 250mA Volt (v) Frequency (MHz) : 50 Hz Hertz (HZ) Material : MS Operating Temperature : 050 Deg. C Celsius (oC) Dimension (L*W*H) : Depends on Current rating required by Customer Millimeter (mm) Protection System : Over load, over current and earth fault protection Color : RAL7032 Product Type : Three Phase primary Current Injection Test Set Up to 25000A and 500kVA Warranty : 12 Months from manufacturing Weight : Depends on Current rating required by Customer Kilograms (kg) Size : Depends on current rating required by Customer Insulation Box : Output through bus bar on backlite

Send Inquiry

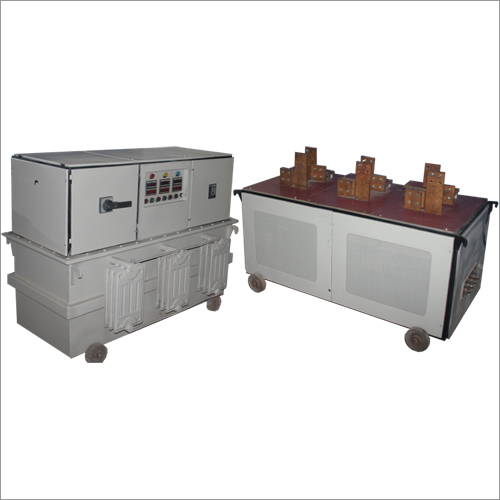

Heat Run Test Set Price Range : 50000.00 - 100000.00 INR/Set Minimum Order Quantity : 01 Measuring Voltage Range : Up to 800kV and 250mA Volt (v) Frequency (MHz) : 50 Hz Hertz (HZ) Material : MS Operating Temperature : 050 Deg. C Celsius (oC) Dimension (L*W*H) : Depends on current rating required by Customer Millimeter (mm) Protection System : Over load, over current and earth fault protection Color : RAL7032 Product Type : Three Phase primary Current Injection Test Set Up to 25000A and 500kVA Warranty : 12 Months from manufacturing Weight : Depends on current rating required by Customer Kilograms (kg) Size : Depends on current rating required by Customer Insulation Box : Output through bus bar on backlite

Send Inquiry

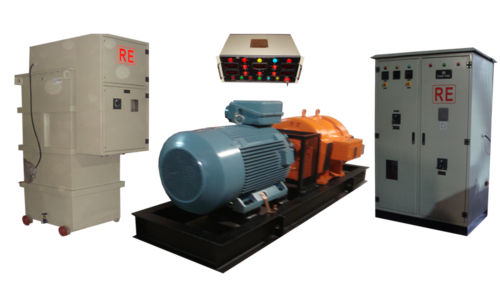

Double Voltage Double Frequency Tester Price Range : 50000.00 - 100000.00 INR/Set Minimum Order Quantity : 01 Measuring Voltage Range : Up to 800kV and 250mA Volt (v) Frequency (MHz) : 50 Hz Hertz (HZ) Material : MS Operating Temperature : 050 Deg. C Celsius (oC) Dimension (L*W*H) : Depends on Rating required by Customer Inch (in) Protection System : Over load, Over voltage and Earth fault protection Color : RAL7032 Product Type : For testing inter turn insulation of the Transformer Warranty : 12 Months from Manufacturing Weight : Depends on Rating required by Customer Kilograms (kg) Size : Depends on Rating required by Customer Insulation Box : Output through busbar on backlite
