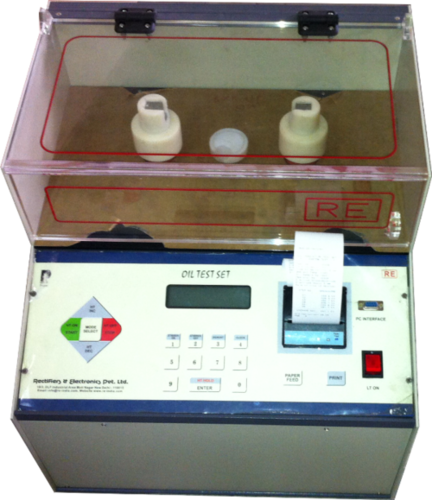

Oil BDV Tester
50000.00 - 100000.00 INR/Set
Product Details:
- Product Type Transformer Oil BDV Test Set Up to 100kV
- Material MS
- Measuring Voltage Range Up to 800kV and 250mA Volt (v)
- Operating Temperature 0-50 Deg. C Celsius (oC)
- Frequency (MHz) 50 Hz Hertz (HZ)
- Insulation Box Output Voltage on HV electrodes with Oil cup in between
- Protection System Over Voltage , Over load and earth fault protection
- Click to View more
X
Oil BDV Tester Price And Quantity
- 50000.00 - 100000.00 INR/Set
- 01 Set
Oil BDV Tester Product Specifications
- Up to 800kV and 250mA Volt (v)
- RAL-7032
- Depends upon the kV rating required by Customer
- 0-50 Deg. C Celsius (oC)
- Depends upon the kV rating required by Customer Kilograms (kg)
- Over Voltage , Over load and earth fault protection
- MS
- Output Voltage on HV electrodes with Oil cup in between
- Depends upon the kV rating required by Customer Centimeter (cm)
- Transformer Oil BDV Test Set Up to 100kV
- 50 Hz Hertz (HZ)
- 12 Months from manufacturing
Oil BDV Tester Trade Information
- Delhi
- 3 Set Per Year
- 8 Week
- Contact us for information regarding our sample policy
- Bubble Wrap or Wooden packing or As required by the customer
- All India
- 3-4 Weeks from the date of PO received
Product Description
DESCRIPTION :-
Automatic Oil Test set is designed for testing the dielectric strength of insulating oil as per IS-335.The unit develops high voltage between electrodes immersed in oil under test as per IS:6792. In addition to the test preparation in detail, the set is automatically governed by a trouble-free Microprocessor. These features enable user to operate the equipment with a single touch of the 'Feather Touch Button'. The results can be viewed on the backlit LCD display or can be printed as a hard copy. The results can be summarized at a later stage because of the presence of memory function for the tests conducted stored in the memory.
Available in three Models
(i) Motorized Oil Test Set (MOTS).
(ii) Semi Automatic Oil Test Set (SAOTS).
(iii) Fully Automatic Oil Test Set (AOTS).
Features :-
- Compact size & portable design
- Build in safety arrangements
- Easy to operate
- Auto / Manual Selectable
- One Touch Operation
- On Screen LCD & Printer Facility on the Unit
- Real Time Clock & Date
- 9999 record Memory
- Computer Connectivity through USB/RS232
- Operator code programmable
- Rate of rise of voltage 0.5kV/sec to 5.0 kV/sec
Accessories :-
Standard Accessories
Oil Pot, Go No Go gauge, Round ELCTRODE
Optional
-
Mushroom, Cylindrical
-
Earthing cable
-
High Voltage Calibrator, Sphere Oil Cup, Oil Sampling Bottle
Technical Specifications :-
|
| Technical Details of all the Three Models of OIL BDV TEST SET | |||
|
|
|
|
|
|
| Sr. No. | Parameters | Motorized Oil Test Set | Semi Automatic Oil Test Set | Fully Automatic oil Test Set |
| 1 | Rate of Rise | 2KV/sec | 2KV/sec | 0.5 to 5KV/ Sec |
| 2 | Operation | Individual ( Every after every reading you have to reset) | One touch Operation | One Touch Operation |
| 3 | Operation | Only one | Preset 06 nos | Setable 4 -9 Operations |
| 4 | Standard Deviation | Manual | No | Yes |
| 5 | Average Calculation | Manual | Yes | Yes |
| 6 | Memory | Individual Reading (Only for current test) | Present test reset / Power Off | Previous 9999 Tests |
| 7 | Printout | No | No | Yes |
| 8 | Computer Compatibality | No | No | Yes RS232 |
| 9 | EMI/EMC Protection | No | Yes | Yes |
| 10 | Safety as per IEC61010 | No | Yes | Yes |
| 11 | Display | Analog/Digital | LCD 1" X 1" Alpha Numeric | Yes 16 X 2 character alpha numeric |
